Introduction

Note:

This module is available from N3uron version 1.22.4.

N3uron ICCP Server

The N3uron ICCP Server module adds native IEC 60870-6/TASE.2 server functionality to the N3uron platform, enabling operational data exchange with authorized ICCP clients.

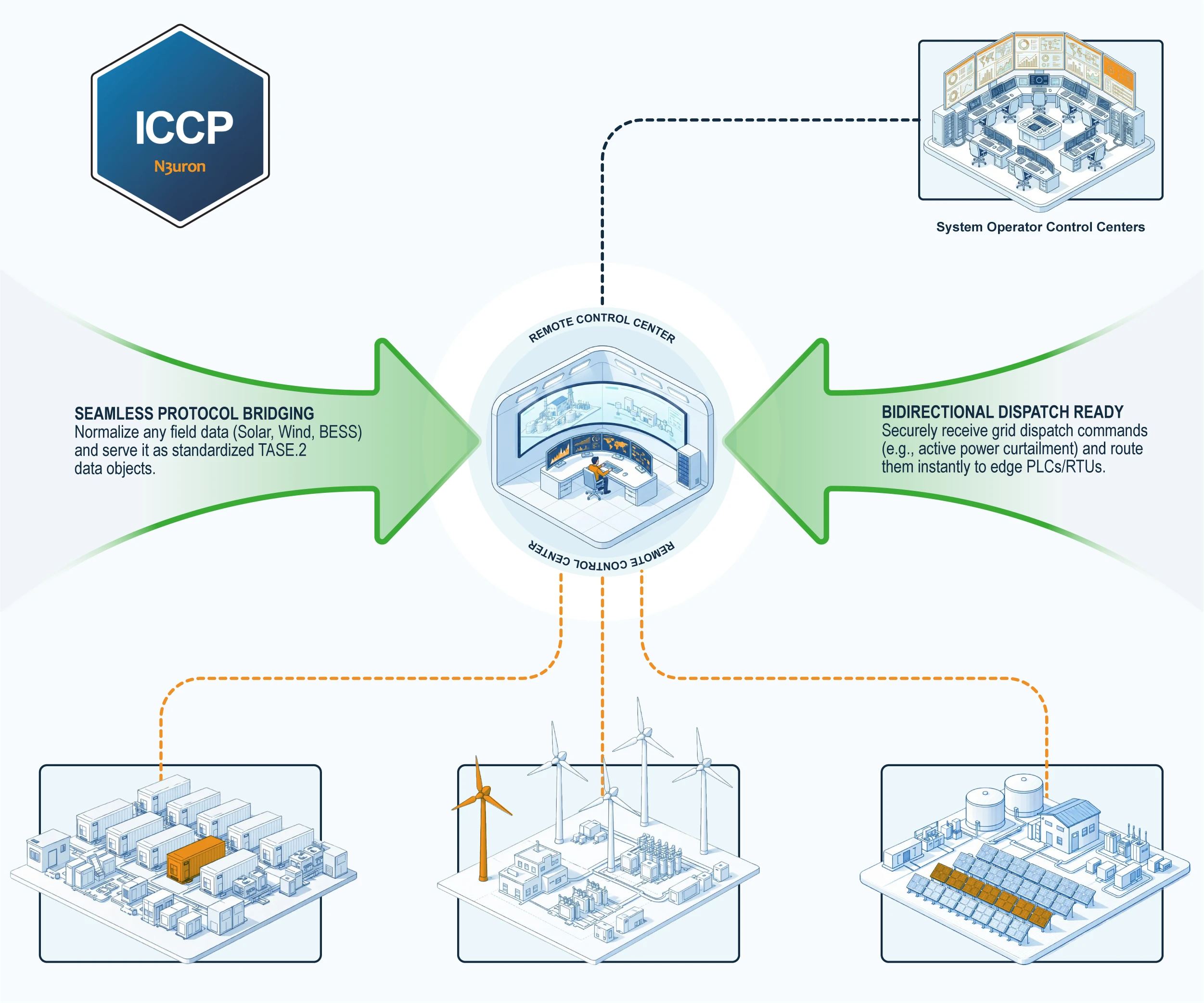

It allows users to create and configure one or more ICCP Server instances and expose selected N3uron tags to external SCADA, EMS, control-centres, and dispatch systems. These tags can contain data acquired, processed, or generated through other modules available in N3uron.

Depending on the configured ICCP/TASE.2 profile and bilateral agreement, the module supports the exchange of telemetry, status information, data quality, events, and control operations.

Data Integration

Data published through ICCP Server can be acquired or processed using N3uron modules such as OPC UA Client, Modbus Client, DNP Client, OPC DA Client, REST API Client, MQTT Client, Siemens Client, and other data acquisition and edge computing modules available within the platform. Communication is performed over TCP/IP in accordance with IEC 60870-6-702.

Main Features

The ICCP Server’s key feature modules include support for:

• ICCP Blocks 1, 2 and 5.

• VCC and ICC using Domains.

• State, Discrete, Real and Command data types.

• DO (Direct Operate) and SBO (Select Before Operate) commands.

• Data type variations such as Q, QTimeTag, QTimeTagExtended, Extended.

• DataSets and DataSetTransferSets.

• Configurable allowed IP List.

• Authentication.

• Built-in TLS encryption (Secure ICCP) without add-on.

• Configurable TCP port, with port 102 used by default.

• Response to client data-value discovery requests.
